The river crossing is a lifeline for a number of Villages on the eastern side of the river.

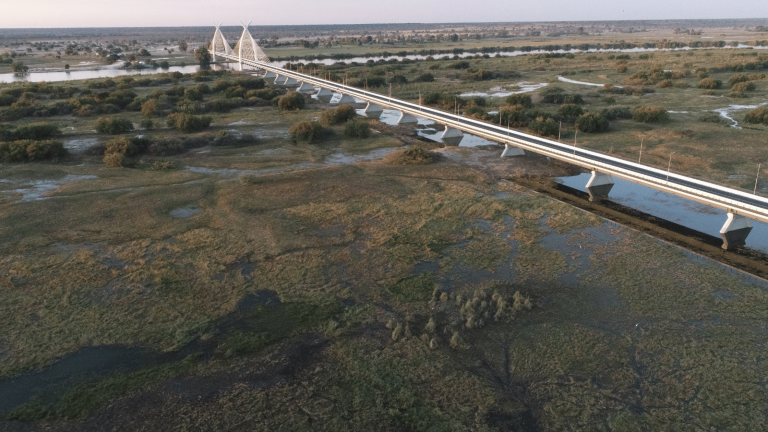

The Okavango River Bridge is located in Mohembo Village in North-West Botswana. The Project comprised the construction of 1.16km long Bridge, about 3km of approach roads, electrical works and associated drainage works. Lighting on the project is fully powered by off-grid Solar System (65KWp Capacity).
The Bridge comprises:
– Right Approach -561.15m
– Cable Stay Bridge – 488.7m [span configuration; 44.35m-100m-200m-100m-44.35m]
– Left Approach Bridge -111.15m
The objective of the Project was to provide an allweather 24/7 river crossing, to replace a ferry that had restricted operational hours (between 6am and 6pm), and to enable people on the eastern side of the river to have access to social, health and education facilities on the west side and to improve their socio-economic development

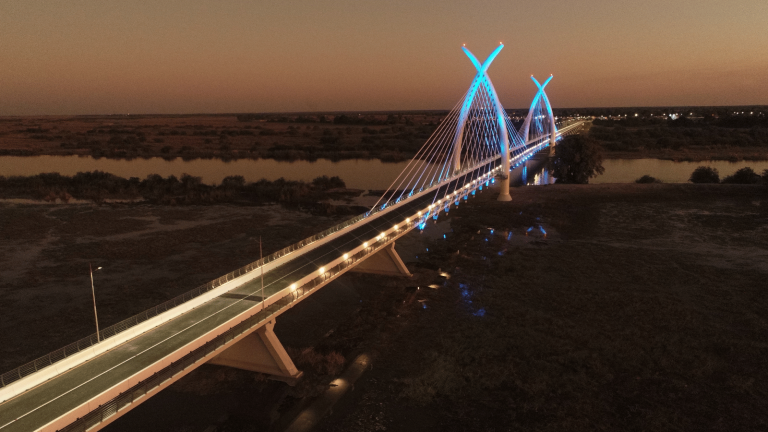

The river crossing is a lifeline for a number of Villages on the eastern side of the river. A Ferry was the means of crossing during daytime. Beyond this period and on occasions when the ferry was inoperable, goods and services like medical, education and other social welfare services could not be accessed by the communities situated on the eastern side. The bridge is a significant infrastructural development in North-West Botswana and people’s quality of life has been transformed after the construction of this bridge, fulfilling UN SDG No. 3, 4 and 9 for good health, quality education and resilient infrastructure. Daily traffic increased 3folds. The Bridge site is in Okavango Delta System, a recognized Ramsar Convention and UNESCO World Heritage Site. The bridge underwent stringent hydrological and environmental planning and management protocols to meet the requirements of the two. The Project met its objective and enjoyed the participation of the local community throughout all phases with Please explain why you think this project should receive an award? regular stakeholder consultations. The aesthetically pleasing design of Cable Stay Bridge with Pylons shaped as elephant tusks blends with nature, the built environment and compliments the area’s indigenous pride in wildlife and tourism. Botswana has the largest number of elephants in the world
