GNW Pavilion

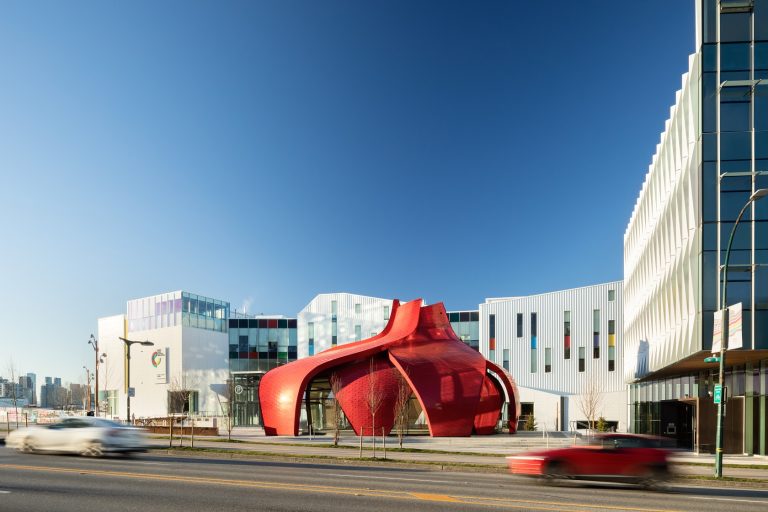

Adjacent to Emily Carr University of Art and Design in Vancouver’s South Flatz neighbourhood, this artistic lotus flower-shaped retail pavilion provides a communal focal point.

Facilitated by digital modelling, a unique yet simple hybrid timber-steel structure was developed to support this complex lotus shape. The principal structure consists of five inner petals constructed of curved glulam members and seven glazing columns that support a hybrid timber-steel dome.

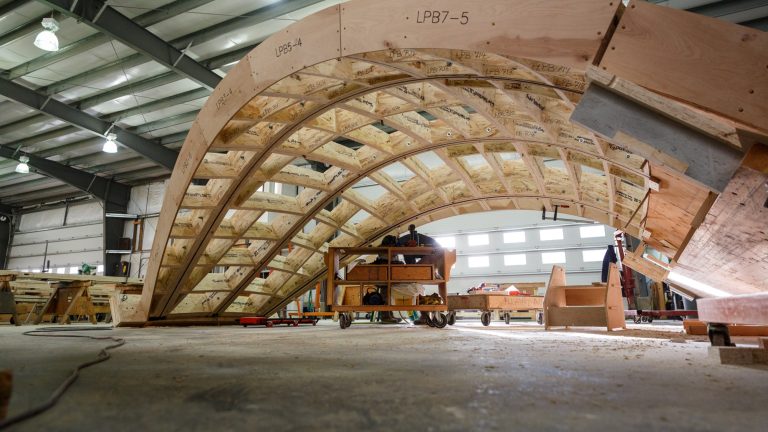

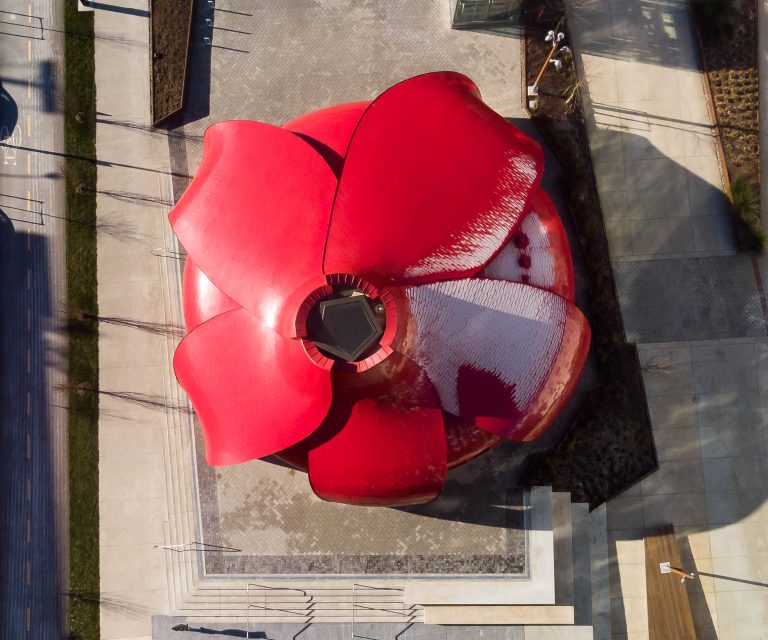

The five outer curved petals were sculpted from engineered wood and are supported on the lower dome and petals. The complete structure was fabricated from approximately 40 prefabricated sections comprised of over 7,000 individual pieces of wood and steel, all cut with tight tolerances from CNC machinery.

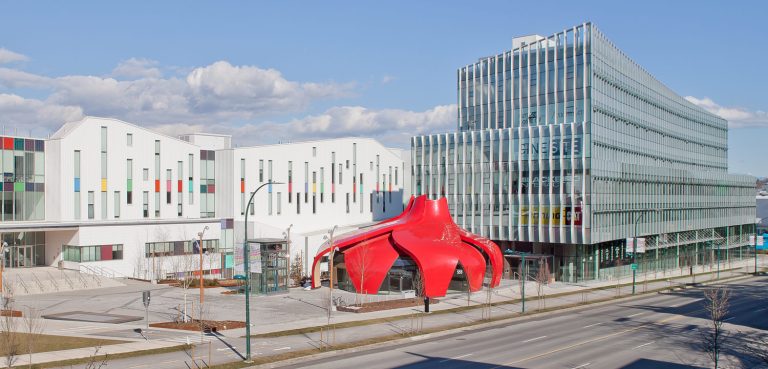

The result is a communal pavilion between the University Campus and PCI’s new technology-focused office development, creating a space that acts as a gateway between the two buildings, engaging dialogue and inspiring creativity.
